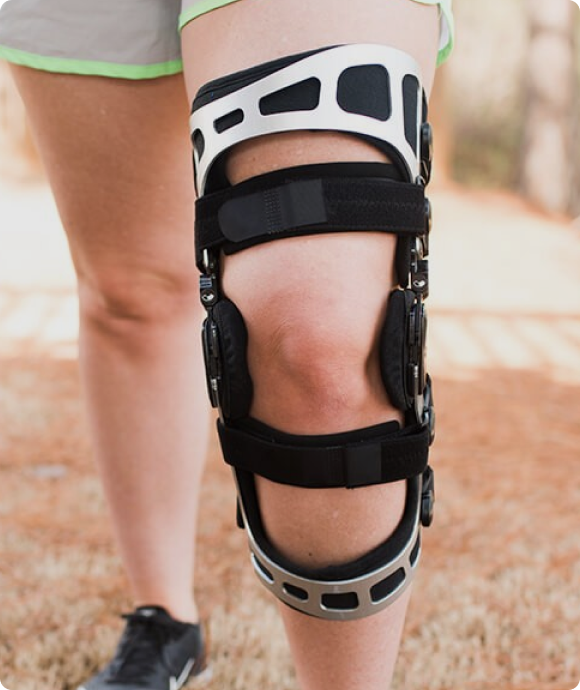

OA Dual Upright ROM Hinge Knee Brace

Model: # ISO-KN22xx

HCPCS: L1845/L1852

About this Product

The ISO Preferred OA Dual Upright ROM Hinge Knee Brace (KN22xx) is a lightweight double upright knee orthosis with adjustable ROM hinges for flexion/extension and varus/valgus joint control. The solid metal double uprights provide medial/ lateral control. Rotation control is provided by the solid metal on anterior portion of the thigh and calf cuffs in combination with the dual condylar pads at the knee joint. A tool set includes custom hinge stops to provide individualized flexion/extension settings. The combination of controlled movement features helps reduce the time it takes to heal discomfort from surgery or injury and the lightweight open design allows for longer periods of wear without discomfort. Sizes S to XL; select left or right side.

Product Description

Features

Left and right knee models
Includes toolkit to install hinge stops
Rotation control of the thigh and calf achieved through solid metal and condylar pads
Flexion settings of 0°, 10°, 20°, 30°, 45°, 60°, 75°, 90°, 105°, 120°
Extension settings of 0°, 10°, 20°, 30°, 40°
Varus/valgus hinge adjustment
Easy-access ROM hinge adjustments
Hand-washable
Medial and lateral support helps reduce injury and assist recovery
Unicentric/polycentric hinges provide stability, controlled and free movement
Covered, condylar cushions at the hinges for comfortable fit
Easy application with advanced gripping materials on straps to secure

Indications

Provides stability for treating mild injuries of the collateral ligaments, menisci and patellar retinaculum in addition to support and relief for chronic knee pain or instability, loose body in the knee, cartilage or meniscus tears of the knee, sprains and strains of the knee, and old disruption of the anterior cruciate ligament. ROM hinges have extension/flexion and varus/valgus control settings.

Sizing & Accessories Information

SKU	TYPE	SIZE / DESCRIPTION	THIGH CIR.	CALF CIR.
ISO-KN220L	Sizing	Left Small	15.5” – 18.5”	11.5” – 14.5”
ISO-KN220R	Sizing	Right Small	15.5” – 18.5”	11.5” – 14.5”
ISO-KN221L	Sizing	Left Medium	18.5” – 21”	14.5” – 17”
ISO-KN222R	Sizing	Right Medium	18.5” – 21”	14.5” – 17”
ISO-KN222L	Sizing	Left Large	21” – 23.5”	17” – 19.5”
ISO-KN222R	Sizing	Right Large	21” – 23.5”	17” – 19.5”
ISO-KN223L	Sizing	Left X-Large	23.5” – 26.5”	19.5” – 22.5”
ISO-KN223R	Sizing	Right X-Large	23.5” – 26.5”	19.5” – 22.5”
ISO-KN208	Accessory	Knee Suspension Sleeve	—	—
